DataNet
High-End Wireless Data Acquisition System
DataNet hardware and software solution empowers any organization to control distributed networks from a single location. Using Zigbee wireless mesh network configuration, allowing for 65,000 units in each network, DataNet enables real-time monitoring of multiple test points in a single operation.
- Reliable bi-directional transmission ensuring
no data loss
- Transmission range can be constantly expanded by adding additional network units
- Minimal costs thanks to wire-free infrastructure
- Portable units facilitating easy deployment in various environments
- Receivers, recognizing up to 8 end units and 16 Repeaters
- Repeaters, recognizing up to 24 end units and 16 Repeaters (simultaneously).
|
| |

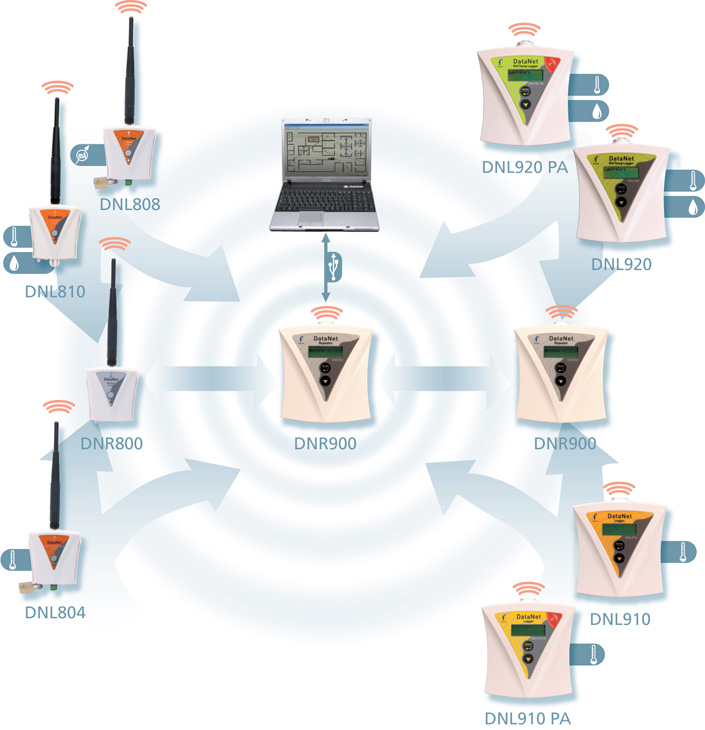

DataNet System contains:
|
| |
 |
DNL910 and DNL920
Internal temperature and/or humidity loggers.
Supports four external inputs: 4 to 20 mA, 0 to 1 V, 0 to 50 mV, PT-100 2 wires, Thermocouples (J, K and T), Dry Contact, Pulse Counter and Frequency.
Rechargeable battery operation. |
 |
DNL910 PA and DNL920 PA
Loggers with integrated power amplifier for extended range. Same supported external and internal sensors as DNL910 and DNL920. |
 |
DNR900 Receiver/Repeater
The heart of the system controls and collects the data from the end units. Also suitable for extending the system range. |
 |
Mini DataNet Models
Cost-effective wireless single and dual channel loggers, battery operated only
DNL804 (External 4 to 20 mA)
DNL808 (External NTC 10KΩ)
DNL810 (Internal Temp/RH). |
 |
DNR800 Mini Repeater
For extending the system range. |
|
|
