MicroLogPRO
Compact 10-bit Data Logger

Two data loggers are available:
   - Temperature plus external sensors
   - RH and temperature plus external sensors

The new 10-bit MicroLog has all the benefits of the 8-bit MicroLog in addition to the following innovative new features.

MicroLogPRO 10-bit offers a temperature data logger and combined temperature humidity data logger PLUS external sensors.

This new product is fully featured, enabling its use in a wide range of applications including pharmaceutical; food production and storage; transportation; museums, clean rooms and HVAC, to name a few.

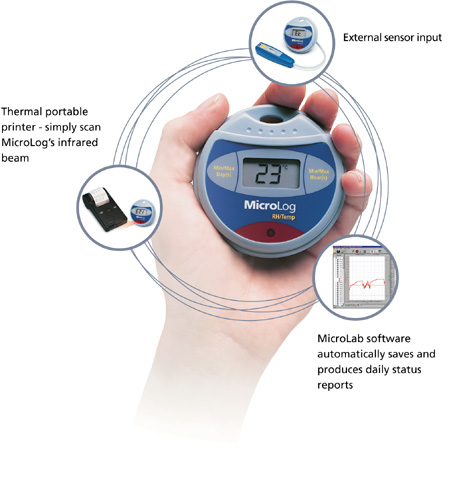

MicroLogPRO Integrates:

• Thermal portable printer - simply scan MicroLog's infrared beam external
  sensor input
• Software - MicroLab automatically saves the data and produces daily status reports of
  your environment.
• Transmitter - monitoring up to 200 loggers and transmitting data to the PC

Specifications

Click here to view MicroLog Specifications (PDF Format)

MicroLog and MicroLogPRO Comparison Table

Ordering Code	EC600	EC650	EC700	EC750
Sampling resolution	8 bit		10 bit
Internal Range	-30˚C to 50˚C	-30˚C to 50˚C (T) 0 to 100% (RH)	-40 to +80˚C	-40 to 80˚C 0 to 100% (RH)
Temperature Accuracy	±0.6˚C		±0.2˚C
Humidity Accuracy	N/A	±3%	N/A	±2%
Resolution	0.5˚C (-30˚C to -29˚C) 0.4˚C (-28˚C to -22˚C) 0.3˚C (-21˚C to 22˚C) 0.4˚C (23˚C to 32˚C) 0.5˚C (33˚C to 39˚C)	0.5%	0.2˚C (-40˚C to -20˚C) 0.1˚C (-21˚C to 50˚C) 0.2˚C (51˚C to 80˚C)	0.1%
Memory capacity	1 sensor - 16000 samples 2 sensors - 8000 samples 3 sensors - 5312 samples		1 sensor - 52000 samples 2 sensors - 26000 samples 3 sensors -16000 samples
Sampling Rate	Minimum - 1 per 10 seconds Maximum - 1 per 2 hours
Output:
LCD	Two digit, 7-segments LCD		Four digits, 7-segments LCD with decimal point
LCD Units Icons	˚C, ˚F, %RH, Ext		˚C, ˚F, %RH, pH, V, mA, mS, AL-H, AL-L
RS-232	Cable connection to the PC with 19200 kbps
USB - optional	N/A	N/A	USB 1.1 Option for quantities over 200 units with low water & dust protection	USB 1.1 Coming soon
Infrared Printout	Minimum, maximum and duration up to 30 days Wireless report to portable thermal printer HP82240B		Minimum, maximum and duration up to 30 days OR Real-time data printout up to 128 last values OR Wireless report to portable thermal printer HP82240B
Power Supply	Internal Lithium battery 3.6V, 1/2AA, 1.2AH
Battery Life	Approximately 24 month (May vary with number of sensors connected and the sampling rate settings)
Dimensions	72mm diameter, 22.9mm thickness
Weight	55g		55g
